Ultra 400

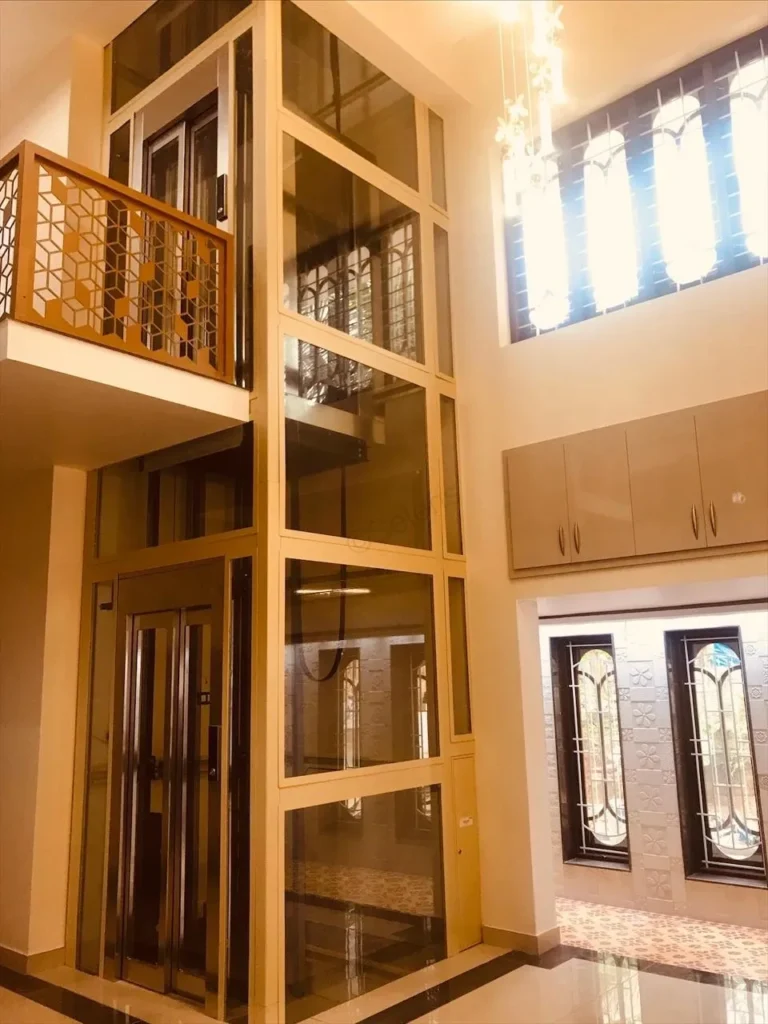

Ultra400 – The Reliable Home Lift

Alexa Apex Elevators is proud to introduce our latest advanced home lift, the Ultra400 which is premium engineered, smooth and state-of-the-art home elevator where your comfort takes centre stage. With a transparent glass body with faster and smoother performance with customized ROG (Returns on Ground) function when unused for home vertical mobility solution. Ultra 400 comes in largest control panel, largest cabin size and doors, faster speed in home elevator industry and smooth operations.

KEY BENEFITS OF BRUSHLESS ELECTRIC MOTOR HOME LIFTS

  • No Devil Pit
  • Single Phase Power – 2 kW
  • Tailor-Made Dimensions
  • No Machine Room Required
  • Suitable for Indoor/Outdoor Installation
  • No Oil/Lubrication Required
  • Premium Functionality
  • Brushless electric motor with counterweight
  • 100% Vastu compliant
  • Flexible upto 6 stops residential house
  • 150mm (5.9inch/0.4 foot)Pit/ Ramp Needed
  • Quality Research Organization Certification
  • Emergency operation in case of power failure
  • Safety gear double motor brake
  • Overspeed governor
  • Anti-crush system with sensors on platform edges
  • Overload sensor
  • High horsepower motor
  • Column/Beam or Supporting Structure
  • Largest control panel
  • Automatic sliding and landing doors
  • Min. headroom 2600mm in existing shaft and 2700mm with own shaft
  • 10-year warranty on rusting
  • Life time warranty on electric motor *

MAKE YOUR PERFECT HOME

Ultra400 ADVANTAGE

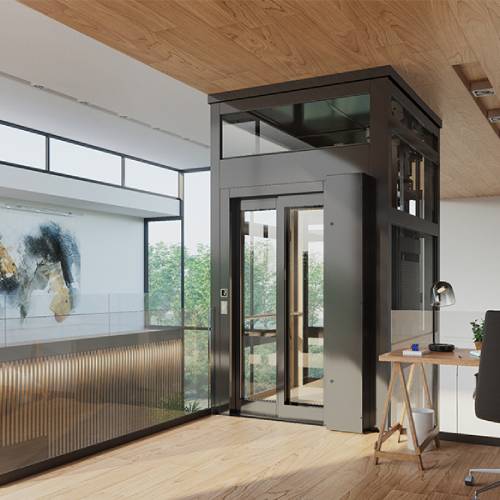

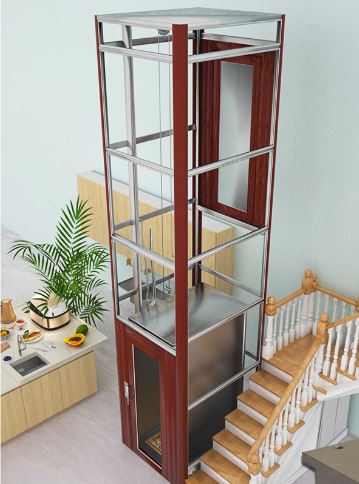

  • Ultra400 comes in metallic sleek shaft or can be installed in a masonry shaft with easy operations and maintenance.
  • In this option, you have to provide a three-side cover with RCC/brick or metal fabrication and we provide you with the cabin/doors and the mechanisms.
  • This option is ideal in case you have an existing shaft or if the elevator will be positioned next to a wall/corner where a glass or transparent shaft may not be required.
  • For outdoor installation, the landing doors are customized for harsh weather conditions.
  • In this option, we have flexible entrance options with single, opposite, or adjacent doors (not on the same floor).
  • Total number of travel stops covered is 6 (G+5).

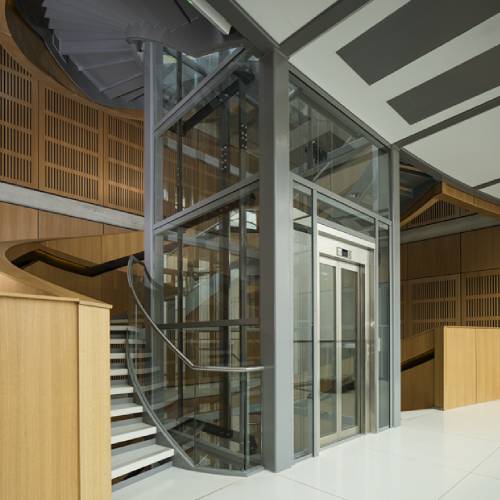

Working of Brushless Electric Motor Home Lifts

Elevators operate via a system of cables and counterweights that exist within the elevator shaft. This integrated design means you don’t need a separate machine room to house the equipment. The traction elevator’s counterweight system enables it to lift and pull the unit without the need for excess energy or fluids.

Here’s how it works:
  • When you enter the elevator cab and push the button, strong steel belts ropes.
  • These belts roll over the sheave, which has built-in grooves. These grooves allow the sheave to maintain a tight grip on the cables.
  • The car and counterweight balance one another, allowing the weight to teeter when activated. This counterbalanced system allows the cab to move in the chosen direction.
  • Appreciated for their smooth ride quality and ability to travel at high speeds, traction elevators are typically used in buildings with over 50 feet of travel.
  • Because traction elevators use a counterweight to offset the weight of the cab and occupants, the motor doesn’t have to move as much weight. This makes traction elevators more energy efficient than other elevators in higher-rise, heavy-use applications.
Total number of stops covered under Ultra400 is G+5 (6 stops ) with maximum travel upto 18mt /18000mm .
Our elevator speed is 0.4 m/s and rated load is 400 kg.
Power Consumption: 230V, single phase, 2 kW depending on the usage
Ultra400 is manufactured with combination of galvanized metal steel and aluminum plus a toughened glass for making it transparent and long lasting.
An elevator traction machine is a motor that drives the elevator car up and down.  The traction machine is connected to a sheave (a toothed pulley), which is a large pulley that the elevator cables are wrapped around. When the motor turns, it rotates the sheave(a toothed pulley), which moves the elevator cables up or down, depending on the direction of travel.

Uncompromised Safety - Engineered With Care

  • We believe vertical mobility home transportation can’t be a long term success with uncompromised safety measures.
  • All our home lifts certified by Quality Research Organization, where Ultra400 goes under extensive safety trials and tests in the factory for raising the safety standards in the home lift industry.
  • In case of a power failure, a battery-operated ARD (Automatic Rescue Device) shall automatically move the stalled lift to the nearest floor, open the doors, thereby facilitating the rescue of the stranded passengers in the lift.
  • High grade brakes help all our elevators in use are equipped with an electromechanical friction brake which helps to stop the elevator carriage with up to 125% of rated load traveling at its rated speed.
  • The braking system of elevators is not just required to stop the carriage at desired floors but must also operate automatically if there is a power outage or loss of power supply to control circuits.
  • If for any reason the car starts moving very fast or beyond the desired speed, no matter in which direction, excessive speed sensor equipment ensures that power to the motor is cut off when the speed of the car crosses 0.4 m/s.
  • Automatic control method of operation is applied for a momentary pressure on a push button to set the car in motion and cause it to stop automatically at any required lift landing. This is the simplest control system and it is sometimes referred to as push button control.
  • All our home lifts undergo excessive passenger loads and overload tests which are detrimental to the normal running efficiency and safety of the lift. During the test, as a safeguard to cover variable supply and temperature conditions, a lift is checked for the car to complete one round trip with contract load plus 10 percent at nominal supply voltage and nominal ambient temperature.
  • There is also a static test with contract load plus 25 percent to check that the brake will sustain the car. With an Overload Prevention Device, the lift car shall not start when the lift car is overloaded. The lift operation shall resume only upon removal of the overload.
  • Ultra400 doesn’t require lubrication or oiling, thus eliminating the risk of oil contamination and potential fire risks. The levelling accuracy lever facility automatically adjusts the lift car position to be level with the landing when the lift car moves up and down slightly with people boarding and leaving the lift car.
  • An option is available to the purchasers of ordering the hall buttons and car operating panel lower than normal so as to make the lift wheelchair user-friendly.
  • Precaution Against Free Fall to prevent the lift car (and counterweight when accessible spaces exist below the pit) from free fall, emergency stop equipment shall be provided which can automatically come into action. The equipment shall also control the falling of the lift when the steel belt rope loosens (slack belt rope safety) when applicable.
  • The home lift is provided either with an emergency signal called an alarm that is operative from the lift car and audible outside the lift well and with a telephone.
  • And Many More…

High Technology

1. Latest-generation controller

  • New traffic management capabilities, optimizing lift speed and reducing travel and waiting times.
  • Thanks to its integrated energy manager, the energy consumption of its components is reduced. It offers energy saving solutions as standard, such as efficient LED lighting and automatic car lighting switch off.
  • With control and safety solutions for evacuation of travelers that go beyond the standard compliance.
  • Eco-designed controller according to the requirements of ISO 9001:2015.


2. Gearless direct-drive motor

  • High strength motors provide up to 30% reduction in size, allowing optimization of the available shaft space.
  • Frequency inverter reduces starting currents, ensuring a smooth, quiet, vibration free journey.
  • Improved accessibility thanks to the permanent-magnet gearless motor, which ensures perfect levelling between the car and the landing.
  • Increased safety thanks to the motor’s enhanced braking systems, including a redundant system.
  • Regulated machine drive offering maximum comfort during travel, preventing uncontrolled car movements and guaranteeing an increase in useful life.
  • Single-phase 230 V power option.

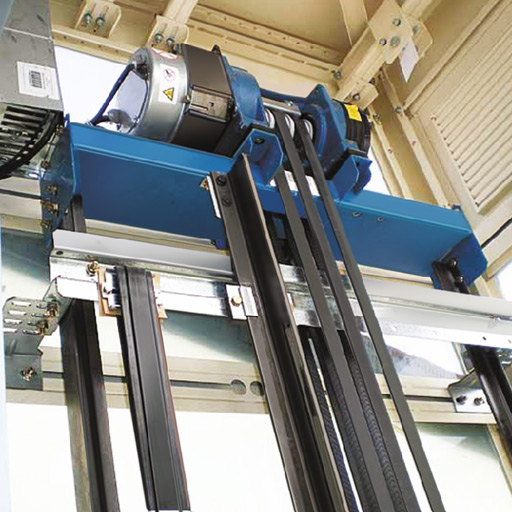

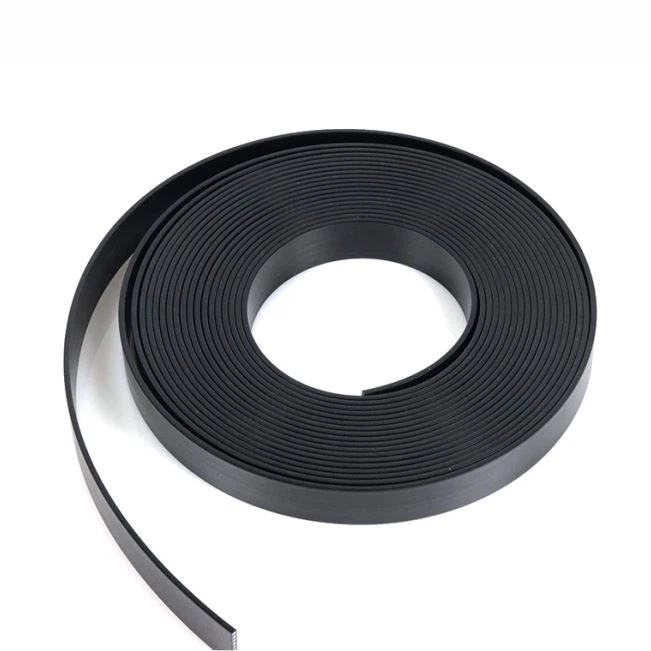

3. Steel Belt

  • Latest direct-drive technology with traction flat steel belt with reduced diameter.
  • The steel belt system allows a more compact and efficient motor.
  • Higher resistance to wear, with increased safety throughout the entire lift’s travel.
  • Steel belt does not require oil, reducing maintenance needs.
  • Overall high efficiency

4. State-of-the-art design

  • Wide range of modern, attractive aesthetic solutions.
  • Solutions with LED lighting and automatic switch off.
  • Handrails, mirrors, embossed pushbuttons and high visibility position displays that improve the ergonomics of the car.
  • Car and landing indicators and controls with exclusive modern designs that comply with the latest accessibility standards.

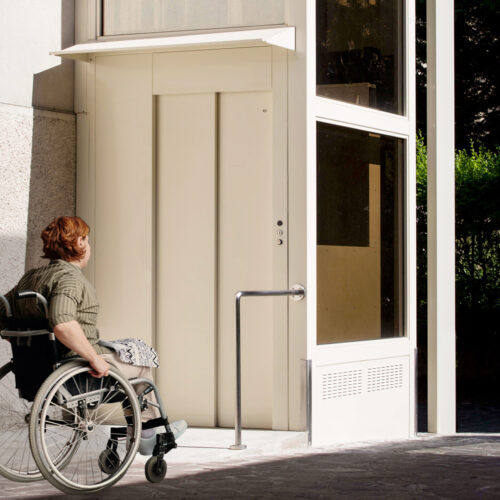

Wheelchair Compatibility With Ultra400

Getting a wheelchair lift for your home is often a better alternative than stairlifts or ramps. Access ramps take up a lot of space and can get slippery in winter time. Stairlifts can be challenging to get on and off, especially for wheelchair users. Wheelchair elevators, on the other hand, will transport you safely seated in your wheelchair between levels. Wheelchair lifts come in a variety of configurations suitable for both indoor and outdoor installation.

A Beautiful User Interface & Experience

Our home lifts offer a near-limitless number of options that allow you to handpick every colour, texture, and accessory to make your home lift truly unique, reflecting your identity in every single detail. Choose from numerous cabin styles through an extensive range of materials and colours for the cabin walls. You can choose satin and scratch-resistant steel, or textured and plain finish modern walls, or opt for the vivacity of the infinite colour schemes in the RAL range, in a game where your imagination is simplified like never before.

Technical Specifications

Duty Load: up to 400 kg

Maximum Travel: Upto 18mt /18000mm

Entrances: Single, Opposite, Adjacent (not on the same floor)

Stops: 6 stops

Speed: Upto 0.4m/s

Headroom: Min. 2600mm in existing shaft and 2700mm with own shaft

Door Width: Min. 600 mm -Max 900 mm

Pit: Min. 150mm .No Pit is required in case of threshold/ramp. Alexa Apex can be placed directly on the floor with 15cm step

Drive: Brushless electric motor with counterweight

Wheelchair Compatibility: Yes

Power Supply: Single-phase 230V, 50Hz

Standards Compliance: Machine directive 2015/ ISO-9001:2015

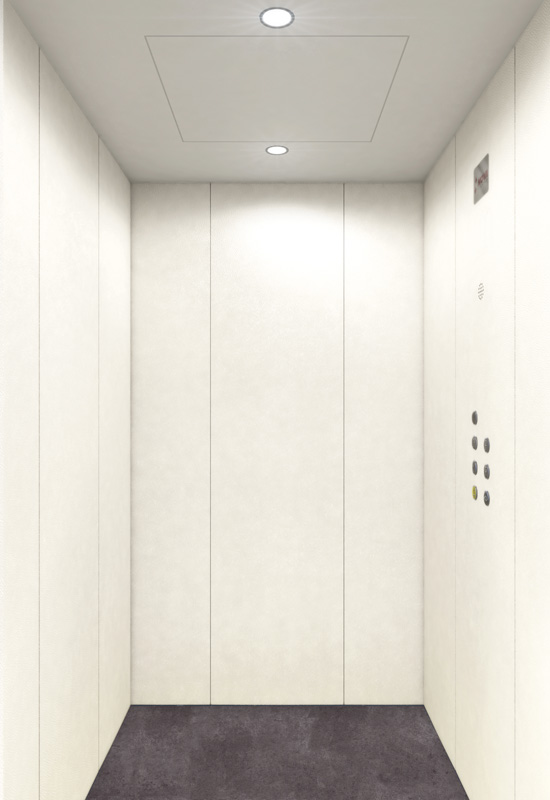

Cars with Skinplate walls - Standard

Alexa Apex lift offers a wide variety of finishes in its standards configuration, with the possibility to choose between 10 skinplate colours and 5 PVC floor types, alongside the car lighting with 2 LED spots.

Standard Ceiling Lightining

  • A4 milk white skinplate walls
  • White ceiling
  • 13082 Gravel Concrete PVC flooring
  • Car lighting with 2 LED spots

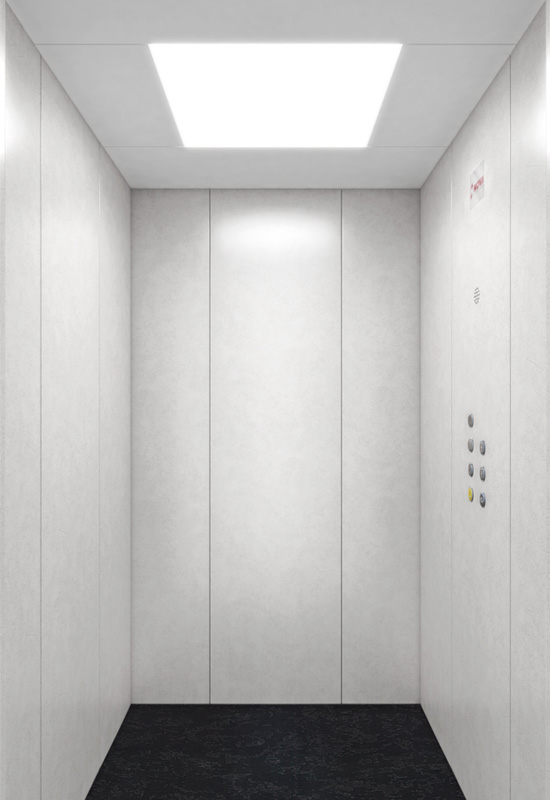

Standard

  • PPS10 marble skinplate walls
  • White ceiling
  • 42292 Charcoal Slate PVC flooring
  • “Panel” LED car lighting (optional)

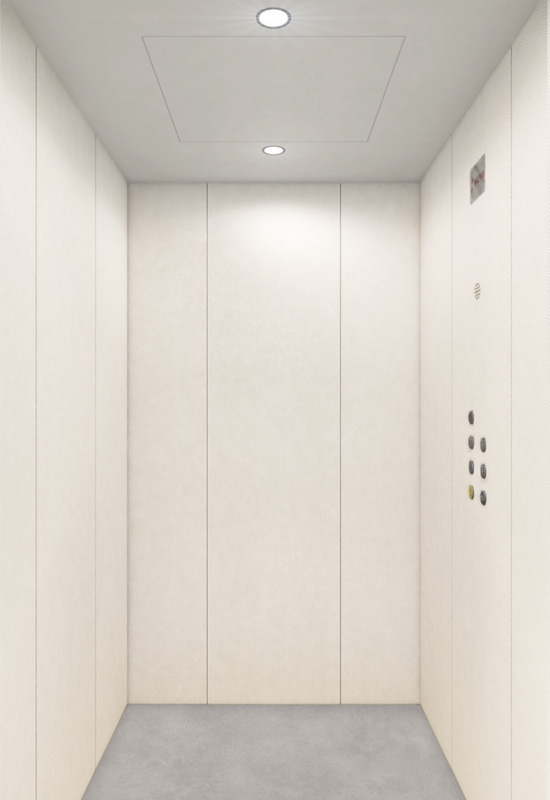

Standard

  • A4 milk white skinplate walls
  • White ceiling
  • 13002 Silver Concrete PVC flooring
  • Car lighting with 2 LED spots

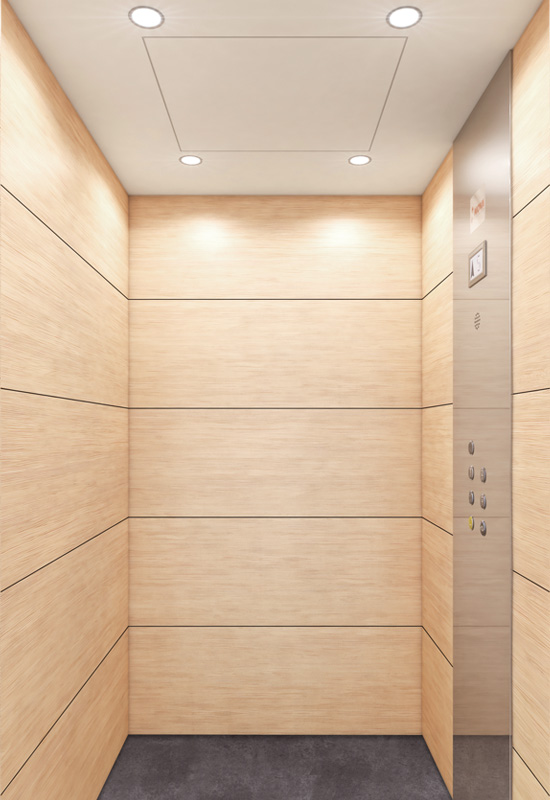

Cars with special walls

  • Plastic laminate walls “381 Douglas Vanilla Microline”
  • White ceiling
  • 13082 Gravel Concrete PVC flooring
  • Car lighting with 4 LED spots

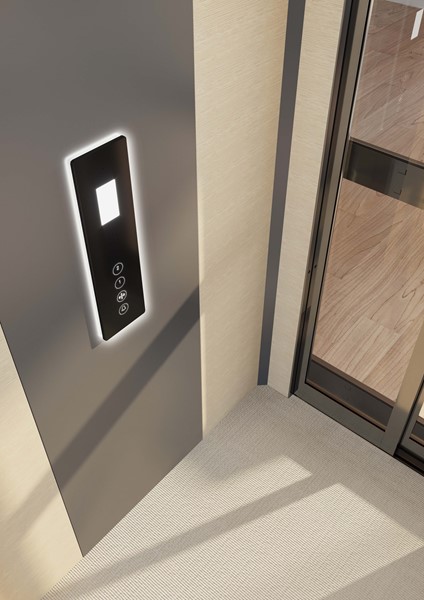

  • Polished stainless steel COP
  • LCD car display

Premium Doors

Premium Doors With Swing and Automatic sliding door

Swing doors

Blind in RAL painted steel
Available in thermal resistant version 2,4 W/mqK

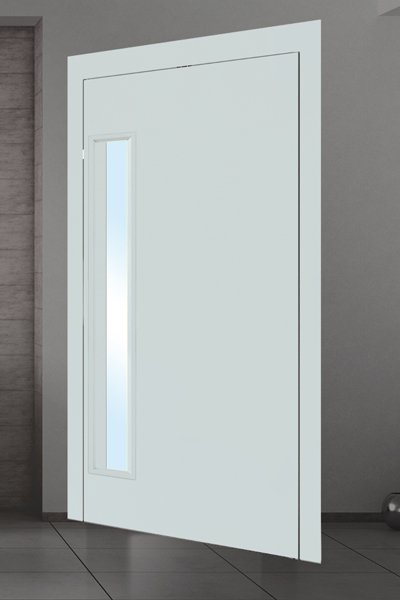

Swing Door Design 2

RAL painted steel with vertical panoramic window and flush handle

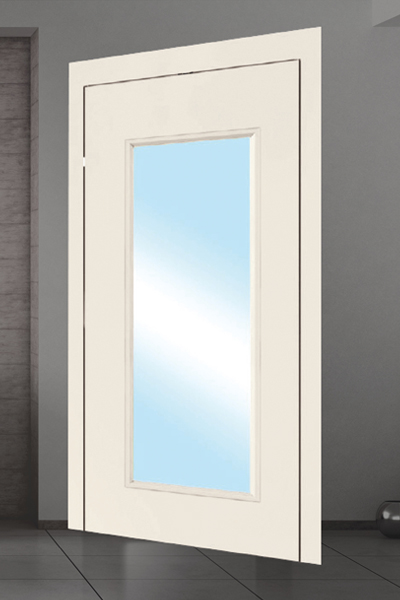

Swing Door Design 3

Glazed RAL painted steel with flush handle

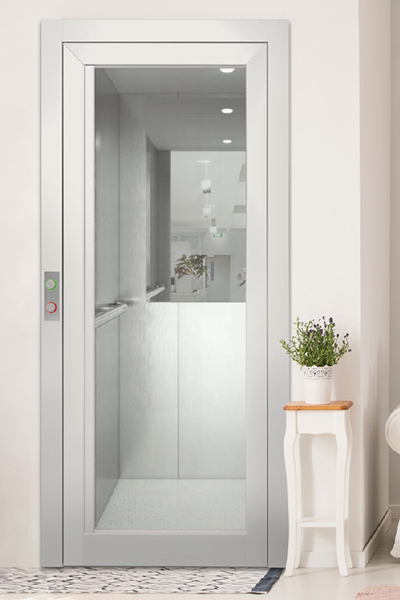

Swing Door Design 4

Panoramic anodized aluminum door with flush handle

Automatic Sliding doors

BLIND PANEL

For cabin and landing
Side or centre opening

Finishes

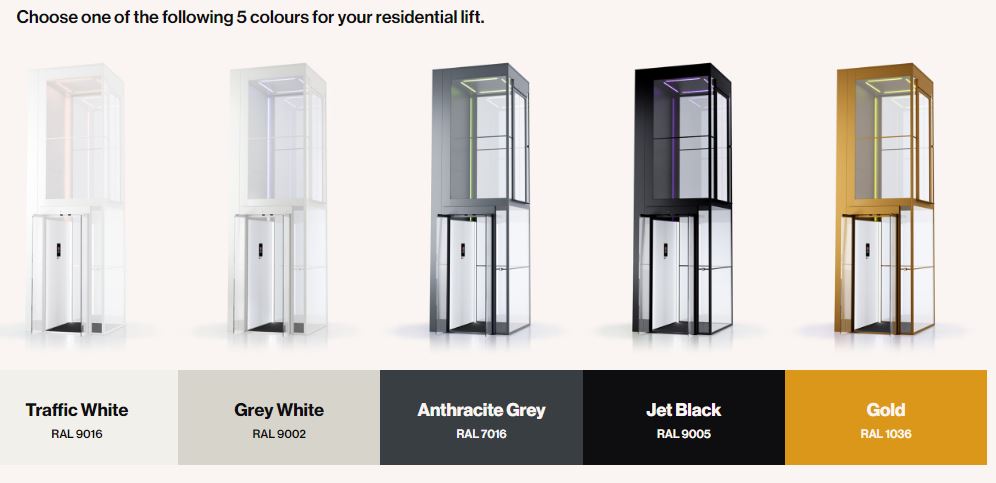

Lift Available In Different Premium Color

Skinplates

A1 OPTICAL WHITE

A4 MILK WHITE

PPS10 WHITE

A90GTA CANVAS

N1 LIGHT GREY

DT63 FABRIC BEIGE

DT65 FABRICK BLACK

F12PPS STAINLESS-STEEL LOOK

N3PP GLOSS BLACK

Plastic laminate

DOUGLAS ICE

DOUGLAS VANILLA

TEAK SUMATRA

AMAZZONIA SUCUPIRA

STATUARIO

POLISHED GOLD

Flooring

PVC FOR CLASSIC –

13332 WHITE MARBLE

42292 CHARCOAL SLATE

13002 SILVER CONCRETE

13022 BETON CONCRETE

13082 GRAVEL CONCRETE

STUDDED RUBBER FOR CLASSIC –

G3 BOLLI (Black)

G1 BOLLI (Grey)

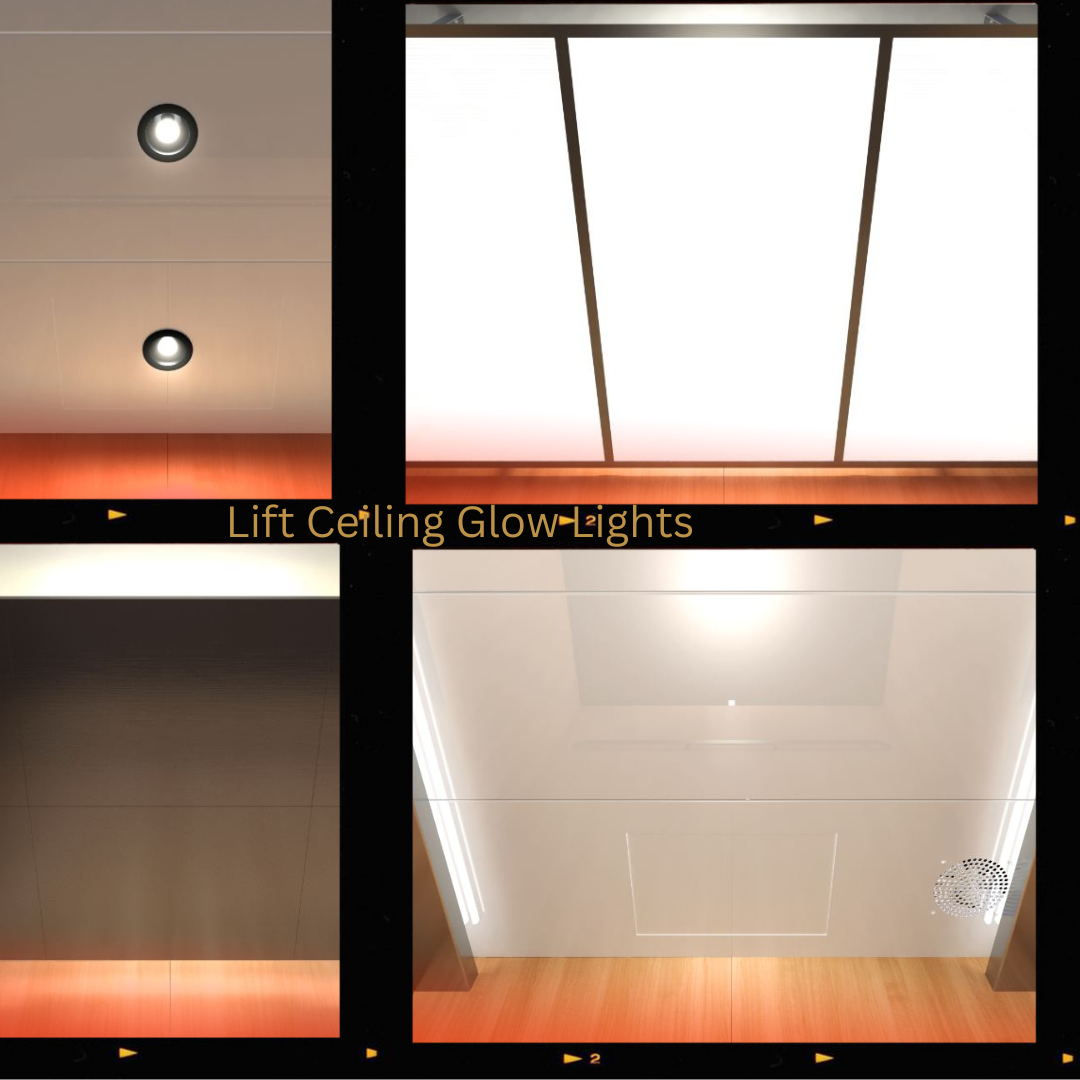

Lighting

Best Ceiling Lights Options

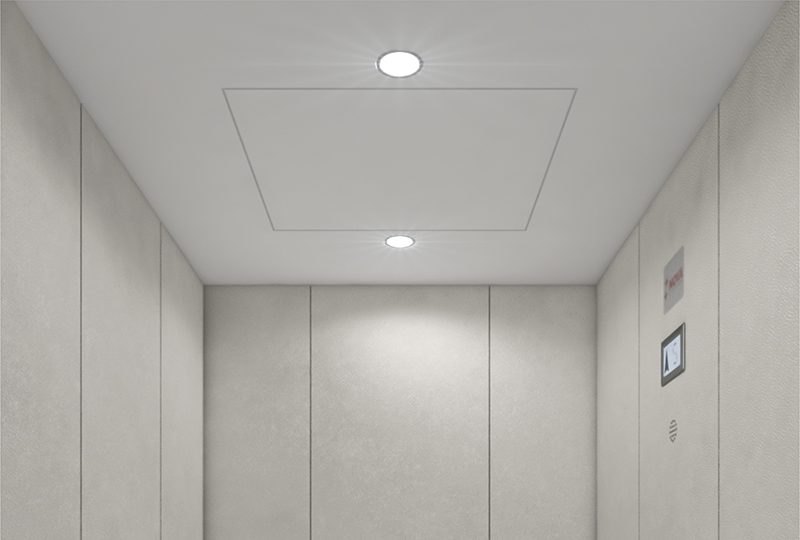

Lights 1

2 x LED Downlights Flush

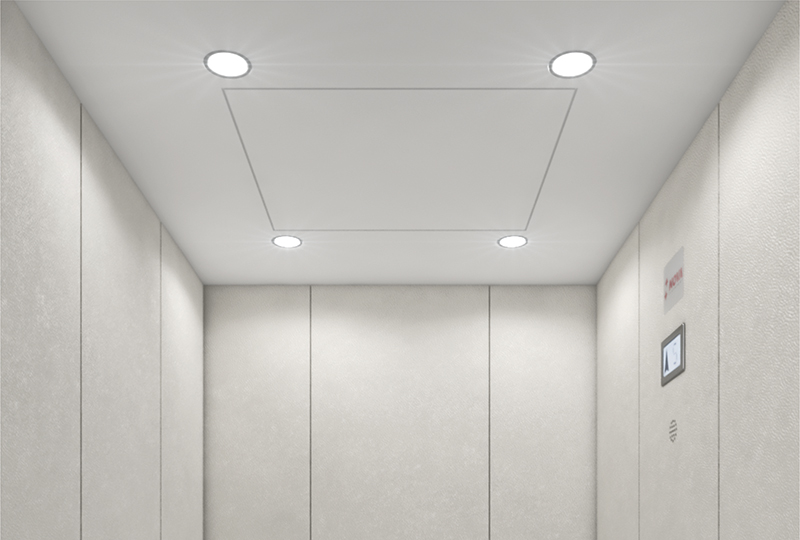

Lights 2

4 x LED Downlights Flush

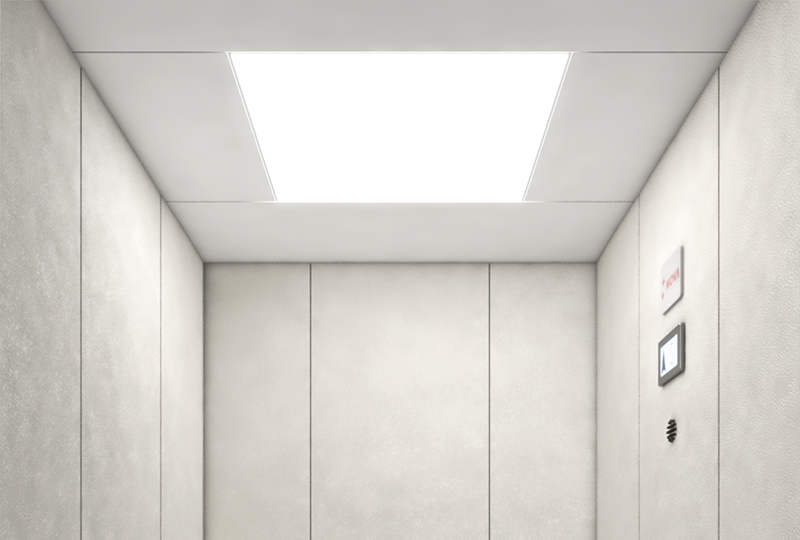

Lights 3

LED – Panel Flush

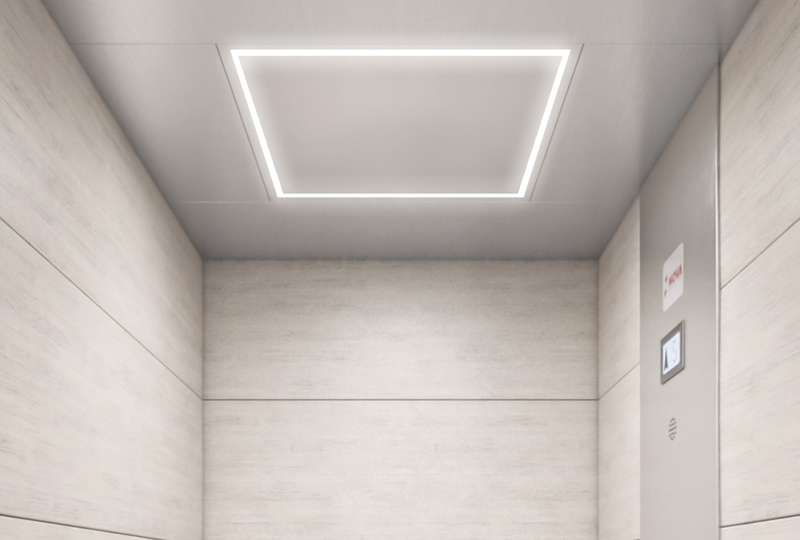

Lights 4

LED – Quadro Flush

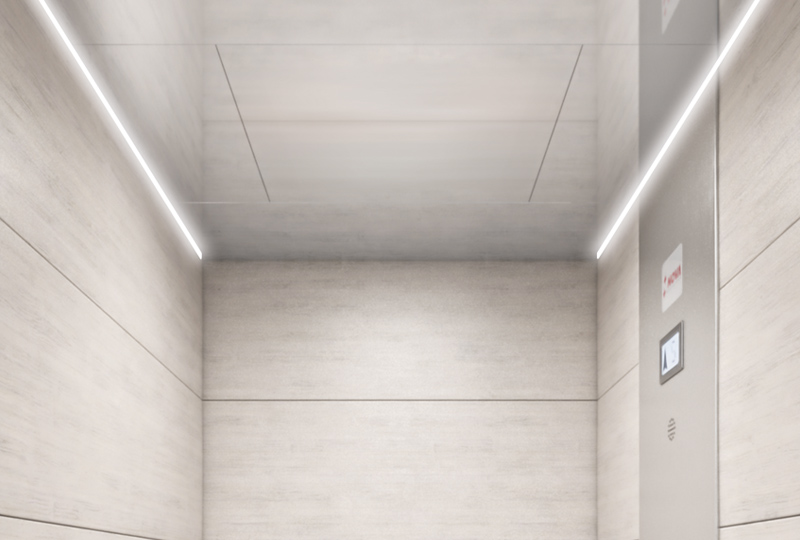

Lights 5

LED – Line Flush

Wheelchair Access

Home lifts for disabled people feature wide cabins to accommodate a wheelchair and possible supports while optimizing space in any installation environment.

Comfort inside the cabin

Comfort inside the cabin

Telephone

Telephone Type – Corded

Material – Plastics

Power Source – Corded Electric

Usage – Keypad

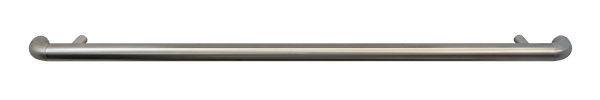

Handrail

STAINLESS STEEL HANDRAIL WITH CURVED ENDS
